MICROCHIP GLASS TAG

Microchip Glass Tag

Microchip Glass Tag
Microchip Glass tag

The array of injectable microchips is used in those animals that require a subcutaneous or intramuscular implantation in the animal. The size of the animal should match the chosen identifier with the species to identify.

Implant guns with metallic needles in different sizes and shapes are used to implant this type of RFID microchips in the different animals.

There are two different types of implant guns available: manual and
automatic implant guns.

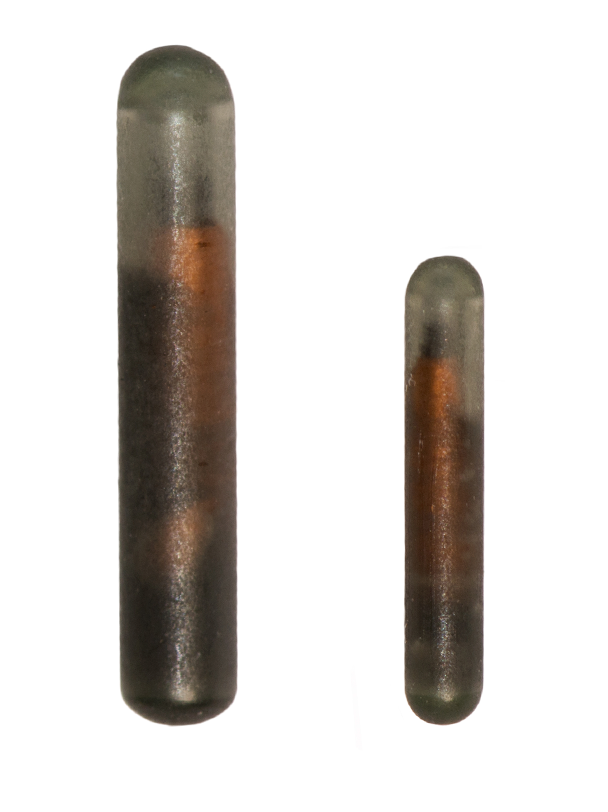

Technical File Microchip Glass Tag:

 Physical:

  Diameter: 1.4 mm ± 0.16 mm / Length: 8.0 mm ± 0.6 mm
  Diameter: 2.0 mm ± 0.15 mm / Length: 12.0 mm ± 0.4 mm
  Diameter: 3.0 mm ± 0.15 mm / Length: 15.0 mm ± 0.4 mm


  Material: BIO GLASS 8625.
  Colour transparent

 Electrical:   Operating frequency 134.2 KHz ± 3 KH
 Chemical:   Water immersion IP68
  Aqueous solution of salts, Alcohol, Oil, HLC(10%),   Ammoniac
 Mechanical:   Shock: IEC 68-2-29
  Vibration : IEC 68-2-6
 Thermal:   Storage: -40C a 90C
  Peak temperature: +120C
  Operating: -25C a 85C
 Others:   Manufacturer´s code ICAR 941
  Coded according to ISO 11784 and 11785. FDX-B
